Nanoleaf 4D Screen Mirror + Lightstrip Kit (For TVs and Monitors up to 85")
Take your entertainment beyond the screen. Nanoleaf 4D is a screen mirror camera kit that syncs the colours on your screen onto the addressable gradient LED lightstrip mounted behind it.
Experience the ultra-immersive "4D" effect as the vibrant backlighting illuminates your space with the colours from your favourite shows, movies, and video games.
Enable Sync+ to extend lighting effects across 50+ Nanoleaf RGB devices.
- Ultra Vivid Screen Mirroring
- Trimmable Lightstrip
- Privacy Cover for Camera
- Use with TV Screens or Monitors
Read More
Read Less
Pairs well with
Get a free replacement for defective products. LEARN MORE
Register with Student Beans to verify your student status and get a 15% discount code. JOIN NOW
Product Details
Dimensions

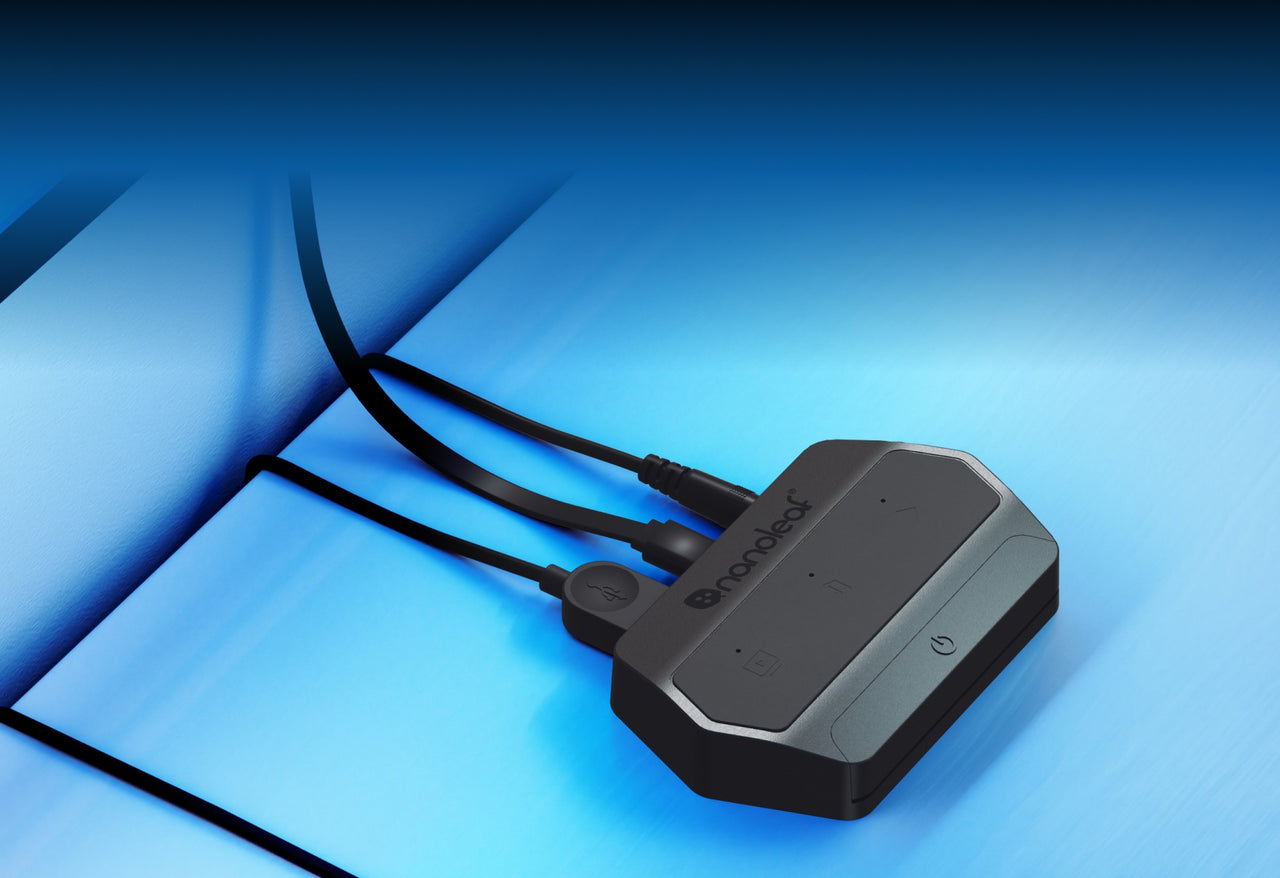

Controller: (L) 93.3 mm x (W) 57.1 mm x (H) 17 mm
Lightstrip up to 65": (L) 4000mm x (W) 12mm x (H) 4.8mm
Lightstrip up to 85": (L) 5200m x (W) 12mm x (H) 4.8mm
Camera: (L) 31mm x (W) 28mm x (H) 34mm
Mount Arm: 181.2mm
Corner Brackets: (L) 148.5mm x (W) 18mm x (H) 17.9mm
Camera Cap: (L) 29.9mm x (W) 27mm x (H) 4.6mm
Cable Length: Camera Cable: 1.5m | Lightstrip Cable: 1m | PSU Cable: 1.5m
General
Lumens Up to 65": 1075 lumens
Lumens Up to 85": 1122 lumens
Communication Protocol: WiFi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.
Dimmability: Yes (via Nanoleaf App, Voice, Controller)
Trimmable Up to 65": Yes
The Nanoleaf App: Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
Compatibility: Apple Home, Amazon Alexa, Google Home, SmartThings, Razer Chroma
Colour
Colour Channel Configuration: Multicolor RGB
Resolution: 30 LEDs per metre
Colour Zones: 10 zones per metre
Power
Input Voltage: 200V-240V,50/60Hz
PSU Output Voltage: 12V2A
Max Power Supply Power: 24W
Max Energy Consumption of LS: 18W
Use environment
Lifetime: 25,000 hrs
Warranty: 2 Years
Operating temperature range: 0℃ to 40℃
Usage: Indoor
IP Rating: IP20
Mounting Type:
Camera:Use mount for above the TV camera placement, or tape to secure the bottom of the camera to a TV shelf.
Controller:Tape at the bottom.
Lightstrip:Tape at the back of the Lightstrip.
Sync+ Requirements
Sync+ Requirements: Your Nanoleaf devices must be on a specific Firmware before using Sync+.
Nanoleaf 4D: 11.2.0+
Matter over Wi-Fi Products : 2.1.3+
Matter over Thread Products: 4.1.0+
HomeKit over Thread Products: 1.6.49+
OG Rhythm Light Panels: 5.3.0+
All Other Nanoleaf RGB Products: 9.2.0+
Get into the action of every movie, TV series, and console game as the colors burst out from the screen to create the most cinematic experience right in your home.
Next-Level Entertainment Starts Here
Grab the popcorn and experience movies like never before with lighting that puts you in the centre of every thriller, drama, comedy, or even horror—from the safety of your couch.
It’s time for a serious upgrade; get VR levels of immersion, without the goggles—or the migraine. Make it rain with every headshot with lighting so immersive it puts haptic feedback to shame.
Feel the beat with sound-reactive mirroring for the front-row concert experience at home. Lights pulse to the sound of your music videos and playlists, perfecting the vibe of any hangout, or taking your karaoke nights to new heights.
Dial Up the Immersion
Choose the perfect immersion level for whatever you’re watching to take your entertainment from 1 to 100. Start slow with 1D for ambient background lighting or dial it all the way up to 4D for a direct match that delivers maximum impact.
Turn Up The Music
Activate Rhythm with the touch of a button to turn any immersion level into a sound-reactive audio-visual experience. Lights pulse to the beat to turn your space into a larger than life music visualizer, and bring your music videos and playlists to life.
Mirror to 50+ Nanoleaf RGB Devices with Sync+
Go beyond the addressable lightstrip and extend the screen mirror effect across multiple Nanoleaf RGB lights at once to transform your entire space with color.
Simple Set Up & Control
Quick setup with the Nanoleaf App. Follow these setup tips & tricks for the best experience!
Choose between more muted cinematic tones or bright popping colors—or fine-tune to your liking with custom adjustments.
Use the Nanoleaf App for the full list of features, or connect to your desired smart home ecosystem app (control non-screen mirroring functions only).
Place your camera either above or below your screen to best suit the layout of your setup. Magnetic cover blocks camera lens when not in use for added peace of mind.
A Stunning Glow That Adapts to Your Needs
Our high resolution addressable gradient lightstrip enhances all ambient lighting and mirroring effects.
With Smart Remapping, lighting effects readjust to fit any size you trim your lightstrip to—automatically.
Customize & Control From Your Mobile or Desktop
Please read our FAQs page to find out more.
FAQs
What's the difference between 4D V1 & 4D V2?
We made two major upgrades based on your feedback:
NEW FOR Nanoleaf 4D V2- Enhanced White & Color Match Accuracy
- Improved Adhesive & Design with the Ultra Flexible Zig Zag Lightstrip for Easier Install
Do I have to turn on screen mirroring all the time?
No, you can also use the Nanoleaf 4D lightstrip as a regular multicolor lightstrip behind your TV to create ambient lighting with solid or gradient color effects.
Is there a difference between mounting the camera above or placing it below the screen?
4D is compatible with multiple mounting options to allow you to choose the one that best suits your TV setup (ie if you have a console table, mounted TV, etc.) .While both placements provide a great screen mirroring experience, depending on your layout, mounting the camera above your screen may slightly improve color accuracy. If the camera is placed below the screen, make sure it is not in a high traffic area where it is constantly being shifted as it can affect the accuracy of your screen mirror calibration.
Which Scenes react to the colors on the screen?
The 4 Screen Mirror Modes in the Nanoleaf app's "4D" tab all capture the colors on your screen and extend them out to your Nanoleaf RGB lights. You can also enable the "Rhythm" effect for each of these modes as well, to allow them to react to the audio AND visuals from your screen at the same time.
All other Scenes found in the Nanoleaf App or on the 4D Controller such as Color, Dynamic, and Rhythm Scenes are NON-MIRRORING, as each utilizes their own unique color palettes.
What is Sync+?
Sync+ is a feature that allows you to virtually connect all Nanoleaf RGB lights* in the same space so that you can extend screen mirroring lighting effects across them based on their relative positioning.
You can enable Sync+ within the Nanoleaf App, and choose which of your specific Nanoleaf RGB devices you want to include/exclude from it.
Does the camera record any video footage?
The 4D camera does not record, save, or store anything onto the device, the cloud, your phone, or anywhere else. It is simply used to feed color data to your lights to create the mirroring effect in real-time. Additionally, the camera is only activated during the initial calibration step, and after that, only when a screen mirroring mode is selected.
For extra peace of mind, a magnetic privacy cover is included with the camera in the kit, so you can cover it when not in use if you wish to do so.
Can I cut the addressable Lightstrip?
Yes, but make sure you cut the loose end of the Lightstrip that is NOT connected to the power cable. Trimming the addressable lightstrip to better suit the dimensions of your TV screen or monitor size will help optimize the screen mirroring experience. Lighting effects will automatically remap to the trimmed length.
What is the difference between the 4 Screen Mirror Modes?
The 4 Screen Mirror Modes—1D, 2D, 3D, 4D— allow you to dial up the immersion to suit the specific type of content you're watching, and your own prefrences.
1D: Ambient white backlighting that adapts to the brightness on the screen.
2D: The dominant color on the screen is mirrored across the entire lightstrip at once.
3D: All colors from the screen are scattered across the lightstrip at once, transitioning dynamically to encompass the feeling of the palette rather than matching the specific action.
4D: An exact match of your content, extended beyond the screen.
